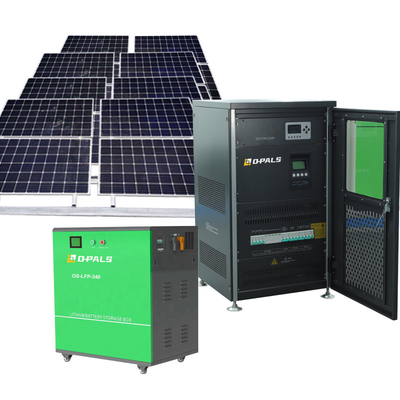

10000w solar generator 10000w home solar power system 10kw home solar power with lithium battery

1.0 Sets
MOQ
$16,832.70(1 - 9 Sets) $15,302.70(10 - 99 Sets) $13,911.30(>=100 Sets)
Price
10000w solar generator 10000w home solar power system 10kw home solar power with lithium battery
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3years
Free Installation Service: No
Model Number: OS-10K-332AH-96
Application: Home, Commercial, Industrial
Solar Panel Type: Monocrystalline Silicon
Battery Type: Lithium Ion
Controller Type: MPPT
Mounting Type: Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
Load Power (W): 10KW
Output Voltage (V): 110/120/220/230V
Output Frequency: 50HZ/60HZ
Work Time (h): 24 Hours
Certificate: CE,ROHS
Pre-sales Project Design: Y
MPPT Input Voltage: 80V~330VDC
MPPT Efficiency: 99%
Rated Charge Current: 100A (Max)
Battery Voltage: 102.4VDC
Battery Capacity: 34 KWh
Product Weight: 1288 Kg
System Size: 54*56*102cm
Solar Panel Size: 201.5*99.6*3.5cm
Basic Infomation
Certification: CE,ROHS
Model Number: OS-10K-332AH-96
Payment & Shipping Terms
Packaging Details: wood box package Off-grid solar inverter 10KW *1pcs Battery Box 34Kwh *1pcs Solar panel 400W *24 pcs Other parts * 1sets
Product Description
Specification
System name
Residential Solar Power Station
System Model
OS-10K-332AH-96
Inverter
All in one Integrated solar energy system
Model
OS-10K-S
Rated Power
10000W
MPPT Voltage Range
80V~330VDC
Rated charge current
100A (Max)
MPPT efficiency
≥95%
AC input Voltage
85-138VAC/140-275VAC
AC Input frequency
45-65 Hz
AC output Voltage
110/220 VAC
AC Output frequency
50/60 Hz
AC output wave
Pure sine wave
THD
<4%
Terminal quantity
4 pcs
Battery
VDA standard built-in lithium batteries
Battery Model
OS-LFP-340
Battery voltage
102.4VDC
Battery Capacity
34 KWh
Battery Type
LFP lithium battery
Voltage for high voltage protection
135 VDC
Low voltage protecton voltage
88 VDC
High voltage recovery voltage
124 VDC
Low voltage recovery voltage
100 VDC
Solar panel
Power Max
400 W
Max working voltage V mpp
41.1 V
Max working current I mpp
9.74 A
Open voltage Voc
50.4 V
Short current Isc
10.18 A
Efficiency ηm
19.90%
Warranty
3years
Work Time (h)
24 Hours
Pre-sales project design
Y
Heat dissipation/Cooling
Temperature control by intelligent exhaust fan
Operating ambient temperature
-20 - +50℃
Storage ambient temperature
-25 - +50℃
Operating/Storage ambient humidity
0-90% No condensation
Product weight
1288 Kg
System Size
54*56*102cm
Battery box size
81*54*89cm
Solar panel size
201.5*99.6*3.5cm
Package Size
68*70*118 cm+88*63*110cm+210*110*100cm
Product Description
Packing & Delivery
Company Profile
OPALS ELECTRONICS has been engaged in Solar energy storage system since 2013.Our solar system solutions and services are helping to make a better, green and renewable life in many countries. Our R&D team is composed of international experts committed to providing first-class solutions to our global customer ,including perfect pre-sale design, detailed installation direction and fast after-sale service. How to get a green clean and renewable power from where has a shortage of electric power ,or now electricity utility. Opals electrnics has many products to solve and deliver it where and when it is needed exists.We just need to start using it. We use latest technology of renewable power . we will make a better life style today, tomorrow and beyond. Real service begins before a customer even makes a purchase and doesn't end after delivery. To help you make a effort to protecting our planet , we offer best quality products and service. Once your using of our products , our experienced service engineers are available in service stations worldwide. We will train you in all aspects of operation, maintenance . As we said, we'll keep in touch.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to South America(20.00%),Western Europe(15.00%),North America(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
residential solar energy system

4. why should you buy from us not from other suppliers?
We have more than 7 year experance in electronics industy , with fashion design team , high quality control system ,fcous on home electronics appliances. all of our products are famous as durable lifespan and easy operating .Choose us and call us

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
